Machine data collection networks in Industry 4.0

Machine data collection networks – Wired and Wireless

Machine data collection requires machines to be connected in a variety of ways to the computer that has the software for analyzing and taking action on the data.


Industry 4.0 involves these:
1. Capture of data from the machine.
2. Transfer of the data to a computer that has software for analyzing the raw data.
3. Reporting the data to people, or sending it to other software.


The computer can be on-premise, meaning within the physical boundaries of the organization, or on the Cloud. Connection can be via a mobile phone network or via wired or WiFi LAN and broadband. These are the options available for machine data collection.


On-premise system
The sensors on machines send data to a server within your organization. The connection between sensors and the server can be wired or WiFi LAN. Users can see reports if they are on the same LAN, from within the shop floor.


Cloud based system
The sensors on machines send data to a Cloud server outside your organization. The connection between sensors on the machine can be direct IOT, via a mobile phone network, by wired LAN or WiFi LAN. Users can see reports from anywhere on earth, on the Web. In the case of the direct IOT via the mobile phone network, there is no IT infrastructure required on the shop floor for data transfer. In the wired or WiFi LAN systems, you need LAN cabling, switches, access points, repeaters, etc. In the on-premise system, you additionally need a server within the organization.


Here are the layouts for various systems of data transfer from the sensor to the server.


Cloud based systems

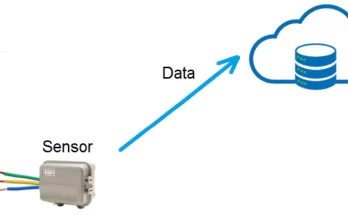

IOT hardware to mobile phone network to Cloud

Machine data collection - IOT sensor to cloud via GSM

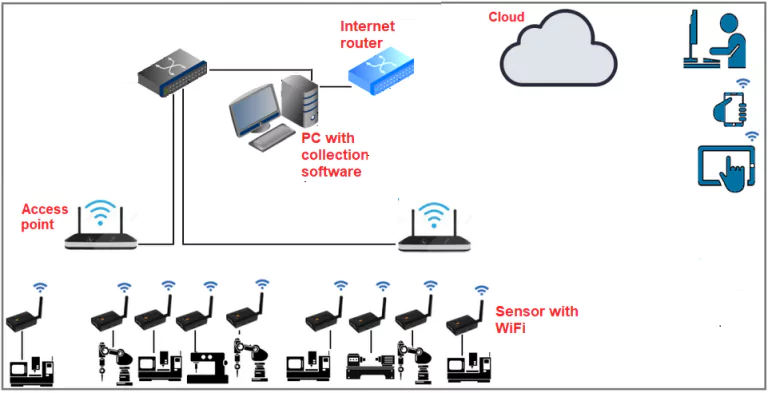

WiFi LAN to Broadband internet to Cloud

Machine data collection - WiFi LAN to cloud

Wired LAN to broadband internet to Cloud

Machine data collection - wired LAN to cloud

LEANworx Cloud is a Cloud based system that supports all the 3 connection options above – IOT direct to cloud, WiFi LAN and Wired LAN.


On-premise server systems

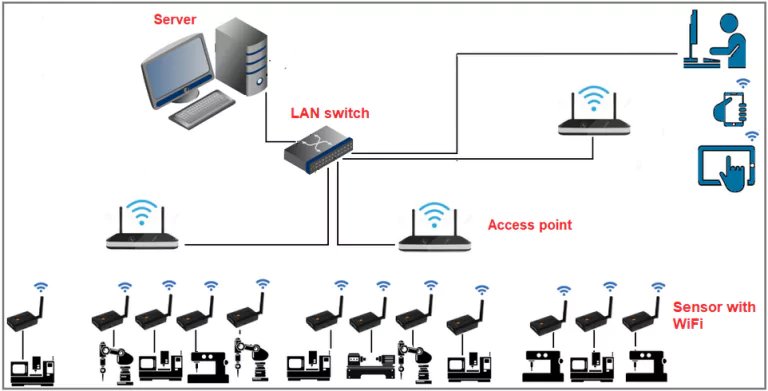

WiFi LAN to on-premise server

Machine data collection - WiFi LAN to on-premise server


Wired LAN to on-premise server

Machine data collection - wired LAN to on-premise server


Requirements for various machine data collection systems
Yes means Required, No means Not required.

IOT sensors direct to Cloud serverWiFi LAN to Cloud serverWired LAN to Cloud serverWiFi LAN to on-premise serverWired LAN to on-premise server
Server in your organization with mirror server, RAIDNoNoNoYesYes
Infra for server:
room with physical protection, air-conditioning, 24/7 power
NoNoNoYesYes
IT personnel for server maintenanceNoNoNoYesYes
IT personnel for LAN maintenanceNoYesYesYesYes
LAN cabling in shop floorNoYesYesYesYes
Wired or WiFi LAN infra on shop floor:
switches, WiFi access points
NoYesYesYesYes



Etc
